c51/2051新线路板(1#,89c51)上DS1302的主电源VCC2连到VCC上，VCC通过开关连到电池正极。DS1302的备用电源VCC1直接连到电池正极。故障现象：

安装好后切换开关状态，芯片强烈发热。测量压降，类似短路。仅将VCC1断开，故障消失；仅将VCC2断路，加电时正常，切换开关后发热，这是最令人奇怪的。将芯片换到旧的89c51线路板(2#,89c51)上，（VCC1，VCC2短接连到VCC）故障消失。

新旧线路板逻辑连接都是一样的。在新板上只留下DS1302芯片，其他芯片均移走仍然出现故障。此时与芯片连接的元件只有MAX232的去藕电容。在新板上使用一只1u的电容，在旧板上是0.1u的。判断当开关闭合时，电容充电，DS1302 VCC1的电压出现瞬断造成内部电路紊乱。焊下该电容，故障现象消失。

匪夷所思的是1#在连接上指示LED，更换了电源开关后故障又出现。最怀疑的是干扰，但看来也还没有找到根本原因。

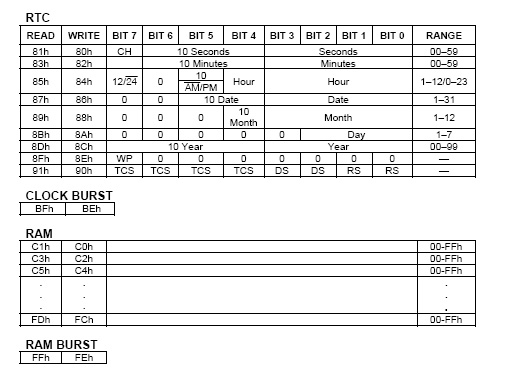

有些怀疑芯片WP是否应常置位，否则三线输入在断电过程中是否会产生紊乱。

再次试验。用于赤道仪2051的线路板(3#,89c2051)（1u电容），取下MCU，工作正常。将MCU1加上，从而DS1302三线连到了单片机上，异常现象出现。重新编程，令端口上电后即复位（但仍会有正脉冲），现象依旧。

换到1#板。取下MCU，工作正常；加上MCU，异常。重新编程，令端口上电后即复位，同时，只在写时钟前复位WP，写结束后即置位。故障现象消失。试验时钟8小时，准确。

3#板。P1.0，P1.1加上拉电阻。原程序，芯片发热。重新编程，使WP置位。发热现象消失。

好景不长，3#又出现问题。将1u电容取下，故障消失。加上，故障出现。

3#线路板2051单片机，加0.1u电容，WP置位。试验一晚上不发热。
