ASTRORAW功能描述

<程序下载,280kb> 2006-12-26

AstroRaw是自编的用于RAW文件处理的程序。其基本的处理思路是:

1)将原始的RAW文件(cr2或nef)解压缩,还原成CCD读数值(DCR文件)。

2)将CCD读数值(DCR文件)用插值算法转化为RGB图像(LDF文件)。

NFL sports jerseys are a abundant means for any fan to appearance cheap nfl jerseys their abutment for their respected team .cheap nfl jerseys As you attending at the altered available, you ability admiration what some cheap nfl jerseys of your alternatives are as you aswell cheap nfl jerseys activate the seek for one that is cheap nfl jerseys acceptable for you.Typically, 2013 super bowl jerseys you will exchange that NFL sports jerseys cheap nike nfl jerseys are advised as replicas of the official bold jersey your respected players wear. They are fabricated of a college superior nylon allowing the derma beneath them to breathe easily. Best of all,cheap nfl jerseys the faculty superior versions ravens jerseys will endure a continued time acknowledgment to the added material. Over the years,49ers jerseys these jerseys accept become cheap nfl jerseys absolute accepted acknowledgment to the cheap nfl jerseys able followings the teams have. Most break at home admirers like to action the jersey of their respected player, while they acclamation at the bold on nfl jerseys cheap the big screen. Those that do Cheap Nike NFL jerseys accomplish it to the big game, they adore accepting their on to appearance the aggregation they cheap nfl jerseys are admitting and they tend to attending ablaze in a affiliate marketer of hundreds cutting the absolute above mentioned jersey When you are searching at the altered NFL sports jerseys, you will apprehension that they accept a altered appearance 2013 super bowl jerseys depending on gender.cheap authentic jerseys The ones advised nfl jerseys cheap for men are about abutting cut to the close and aggregate cheap jerseys china out in the accept areas Women will exchange a added airy close band that gives them added nfl jerseys china comfort Their options cheap nfl jerseys can be bigger in the chest breadth and smaller in the amateur and sides. There are cheap jerseys china even some risque jersey sources cheap nfl jerseys of the added adventuresome women to wear.

3)对DCR或LDF文件执行加减乘除,移位,旋转,中值平均,白平衡等操作

4)最后将LDF文件转化为psd或者jpeg文件输出,再在photoshop中进行处理。

5)对一些相同的文件操作进行批处理。

程序退出时会生成一个log文件。

程序的功能说明:

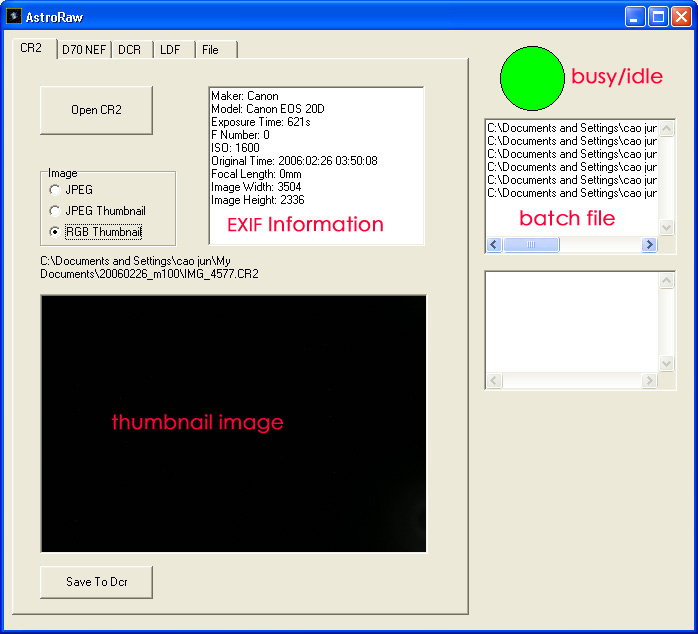

一 CR2页

此栏目用来将CR2文件转为DCR文件格式。

OpenDcr可用来选择多个cr2文件,多选文件名在batchfile中显示。目前支持EOS20D和30D的cr2文件。

当前文件信息在EXIF Information中列出,缩略图在thumbnailimage显示。可以切换显示cr2内的三个缩略图。

SaveToDcr启动转换,存为同名dcr文件。

busy/idle显示工作状态。

本栏操作不记入log文件。

二 D70 NEF页

此栏目用来将D70的nef文件转为DCR文件格式。用法与CR2页相同。

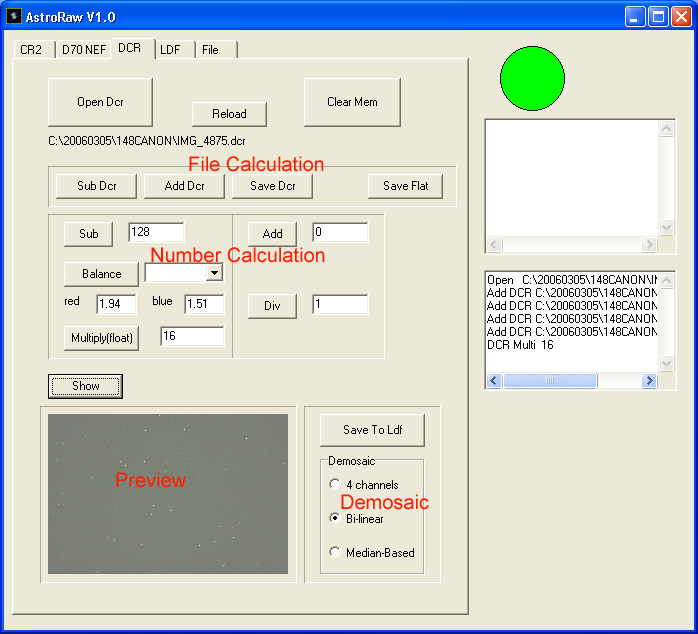

三 DCR页

此栏目用于DCR文件的处理。

OpenDcr用于打开一个DCR文件并存入一个画板内,画板内的原有数据被清除,文件名被显示在按键下边。reload用来重新打开显示在opendcr按键下的文件。ClearMem清除画板上的数据。

FileCalculation区用来对画板上的文件和另一个文件进行运算。包括减(SubDcr)操作,加(AddDcr,支持多选)操作和存为另一个DCR文件。

SaveFlat将画板上的图像的绿色像素经线性插值存为一个DCR平场图像,用于平场改正(在File页)。

NumberCalculation区用来对画板上的文件和一个数字进行运算。包括加减乘除和白平衡。白平衡(balance)只对红色和蓝色像素乘以相对应的系数。

DCR文件为十六位,溢出的数值被截断。

按show键在preview区显示当前画板上的图样,是按照0.45的反差进行修正的。

Demosaic区用于将画板上的图像转为RGB图像。可以选择3种方法。4channel是将每个RGGB单元内的4个像素直接存为RGBG'4个图层。

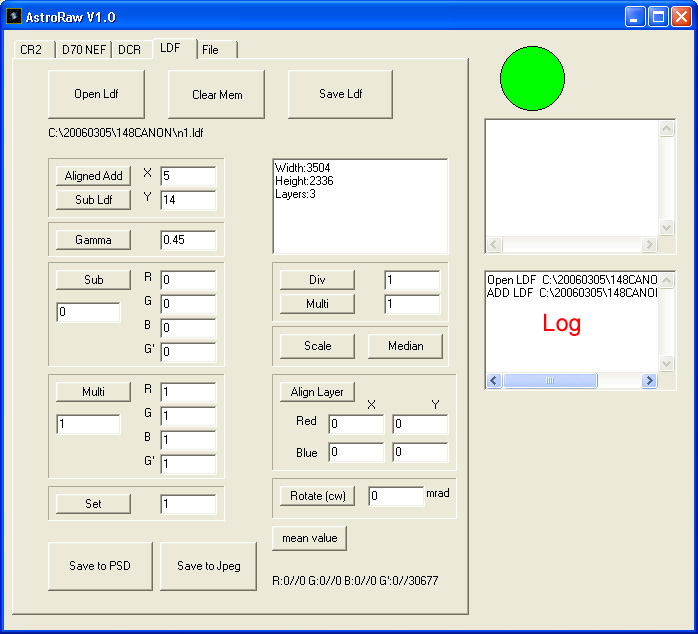

四 LDF页

此栏目用于LDF文件的处理。

显示:

log区域显示操作的历史。

按键功能:

OpenLDF:打开一个ldf文件读入画板。画板内原有数据被清除。

ClearMem:画板内数据被清除。

SaveLDF:将画板内数据存为ldf文件。

Aligned Add:打开一个文件,将它的左上角平移到[x,y](X轴向右,Y轴向下)的位置后与画板上的图像相加。如果原来画板为空,则直接平移。移动时移出边缘的像素会补到另一侧。

Sub LDF:画板上的图像与打开的文件相减。

Gamma:对每个像素执行指数操作。

Sub,Multi:每个图层减去、乘以相应的值。

Set: 所有像素设置为输入值。

Div,Multi:所有像素除以、乘以相同的值(整数)

Rotate:顺时针旋转,角度单位毫弧度。

mean value:显示每个图层的平均和最大值。

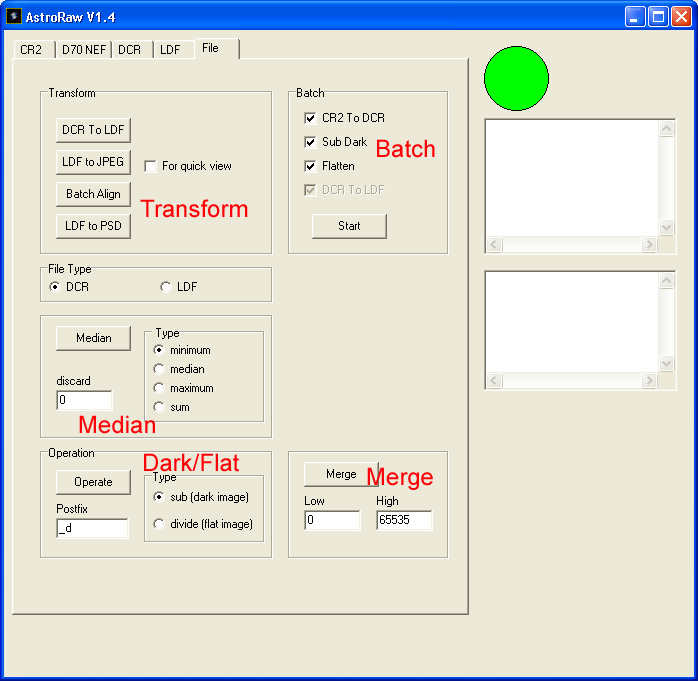

五 File页

此栏目用于文件操作和批处理。(2006-12-26)

Transform区:用于文件转换,包括

DCR转为LDF:需要先在DCR页设置balance,multiply和demosaic参数。可多选文件,之后dcr文件会经过balance和multiply操作,按照demosaic设置存为同名ldf文件。

LDF转为jpeg:可多选文件,之后转换为同名jpg文件。如果选中QuickView,则归一化亮度并加0.4gamma改正。

LDF转为psd:可多选文件,之后转换为同名psd文件。选中apply gamma时使用LDF页上的gamma设置。

Batchalign:平移图像。首先打开图像对齐文件,形如(文件名与ldf文件相同,扩展名不计):

-2
-1
-3
-2
程序自动对所有ldf文件做平移操作。输出文件名加后缀“_a”。

Batch区:对多选的文件执行批处理。

DCR转换为LDF时依次使用DCR页上的sub,balance,multiply和demosaic设置。

File Operation文件运算区:

文件类型选择:设定median,dark/flat和merge处理的文件类型。

Median区:对多选的文件取最小、中值平均、最大或求和。在中值平均时,经排序去掉最高和最低的discard个数据后再求和取算术平均。如果discard为0,则取中值。最小、中值和最大不会溢出。求和溢出时数据截断为2^16-1。

DARK/FLAT区:将多选的文件减去暗场文件,或者除以平场文件。结果文件名加后缀postfix。

Merge区:用于动态范围扩展。分别打开low,high两个文件,合成为新文件。low文件中低于low值的点取low文件的值,高于high值的点取high文件的值,介于两者之间的点按照与高低值的差取线性平均值。

<程序下载,280kb> 2006-12-26
