网眼摄像头的拆卸与改装

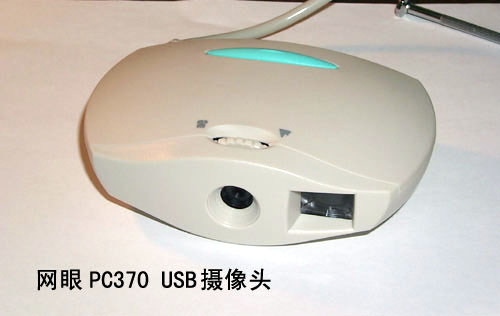

网眼摄像头PC370是东英公司的产品(产品本身没有标识,应是OEM的),厂家提供的技术数据如下:

Characteristics

Specification

Image Sensor

1/4” color progressive VGA CCD

Lens

F/2.3, f4.6mm, manual focus range: 5cm to infinity

Video Capture Resolution

640x480, 352x288, 320x240, 176x144, 160x120

Still Image Capture Res.

Up to 640x480

Exposure

Automatic

Compression

Fixed data rate hardware intraframe compression ratio of 4:1, 6:1, 8:1

Video Data Format

YUV 4.2.0

Power
Consumption

USB interface supplies power, 300mA max. @5V operating, 100mA max. @5V power up,
500uA max @5V suspend

Operating Temperature

0 to 35 deg-C (32 to 95 deg-F)

Storage Temperature

-20 to 60 deg-C (-4 to 140 deg-F)

PC Interface

Universal Serial Bus (USB)

Cable Length

2m / 6.56-foot attached USB cable

Pan/Tilt Angle

360 deg / 40 deg

Tilt Angle

40 deg

Video Transfer Rate

30fps @ QSIF (160x120) and QCIF (176x144), 20-26fps @ SIF (320x240) and CIF (352x288), or 10fps @ VGA (640x480)

Snap Shot Button

Hardware

Viewfinder

Built-in optical viewfinder

Dimensions

113mm (L) x 76mm (W) x 55mm (H)

Weight

Approx. 215 grams

RF Regulation

FCC (Class B), CE



PC370的拆卸过程如下:(拆卸有可能是破坏性的,厂家所提供的保修服务可能失效)

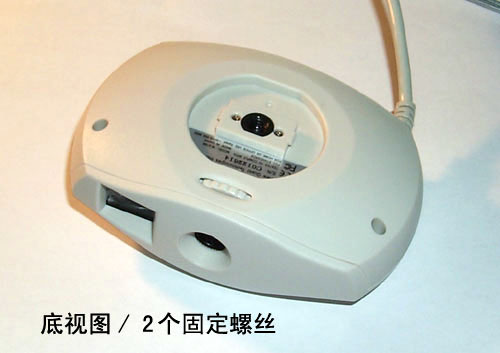

1)拆下底部2个固定螺丝

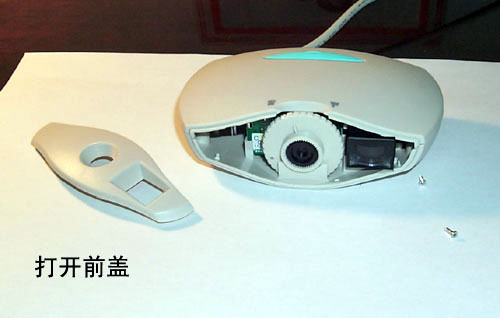

2)外壳有所松动,尝试取下前面板

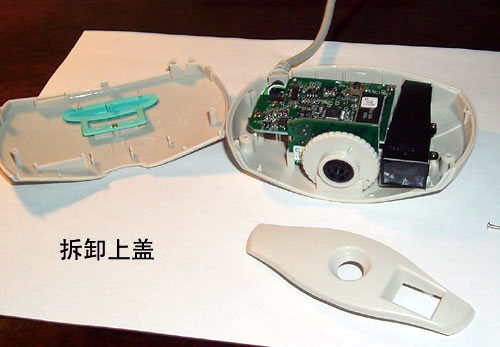

3)可以观察到上下盖内部咬合情况,打开上盖

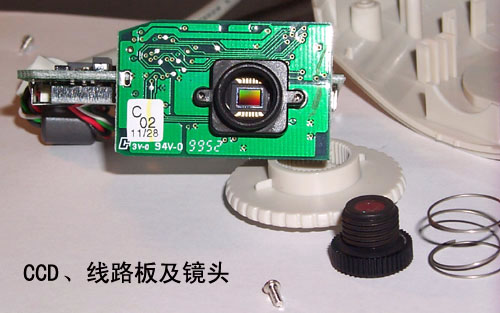

4)取下固定线路板的2个螺钉,卸下镜头

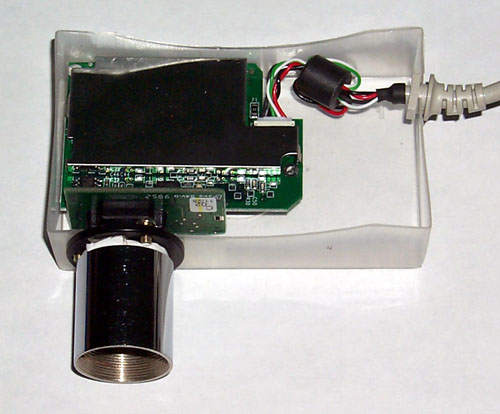

5)利用CCD外原有的镜头座,固定望远镜目镜筒
