当前位置:[北京同好会]>[活动]>[2005年9月3日八达岭观测]



曹军

周六,天气很好,不由人蠢蠢欲动。

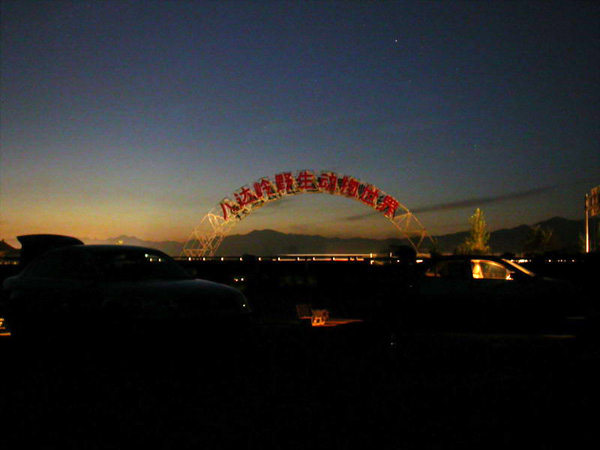

傍晚出发,与王炎前往八达岭,七点多到达平时观测的停车场。一下车,就发现附近有工人在制作预制板,有些担心,不知道他们会弄到多晚。几分钟后三个氙灯点了起来,只能换地方了。穿过高速路桥洞是八达岭野生动物园门前,有个小广场。虽然紧邻高速公路,但是单向行驶,没有迎头的车灯,感觉比原来的停车场还好。

一会儿寇文和尹相东到达。

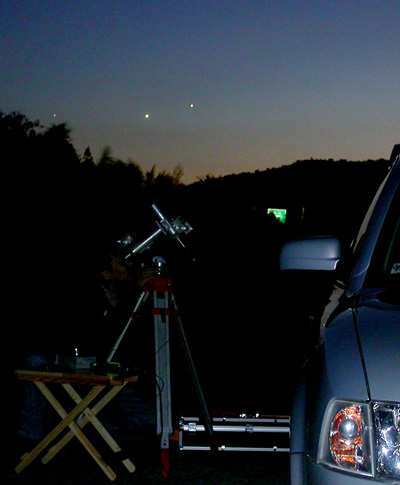

金星和木星比一天前离得远了些。

很多问题只会在野外显现出来。架设赤道仪时首先发现极轴镜口正好被挡上,于是转了半天赤纬轴,虽然是电控的,但耽误了时间。

开始想拍M13,从织女星开始找星,由于在天顶附近,导星镜调焦和对准很不方便。接着高速GOTO时出现数次电机死锁,这是由于蜗轮稍有偏心所致,以前也曾遇到过,稍稍调整一下电机位置就行了。

折腾了半天,改拍M27,GOTO的位置很准确,正在视场中央。比较费时间的是找导星。因为导星镜口径较小,需要2等以上的星。每次调节导星镜指向后主镜方向都有些动,需要来回调整几次。有风时,导星CCD星像晃动得较厉害,部分是导星镜的晃动而不是赤道仪的误差。因为导星镜镜身较长,而且只有一点固定在云台上,稳定性欠佳,考虑换一个折返的。跟踪不理想,赤经方向有振荡拖线,看来导星逻辑需要调整。只有一张还行,不过这是第一次拍,感觉还是挺好看的。

FS78+20D 501s@ISO400:

寇文使用FSQ106+D70拍摄:

M27:

M13:

观测时间较长,几台相机电池都用完了,轮换充电。

21点东方红一号过境,王炎拍摄了照片:

使用D70,2张连拍拼接合成:

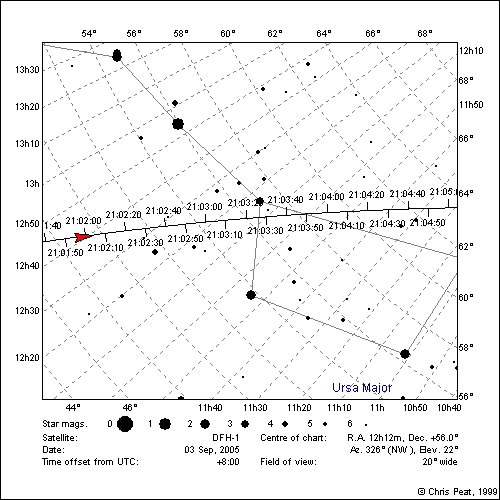

heavens-above上的预告对照:

夜深了,昴星团升了起来(题图)。

对准昴星团拍了几张,感觉这个方向跟踪和平衡好一些。使用昴星团导星,导星镜轴偏角也比刚才小很多。

501s@ISO400,5张叠加,云气的感觉还是有的::

1点半结束返回,八达岭高速路上还算顺利。岂料出了清河收费站到四环前堵得一塌糊涂,整整一个小时没动窝,到家4点,创了记录。

(其余照片由尹相东拍摄)
